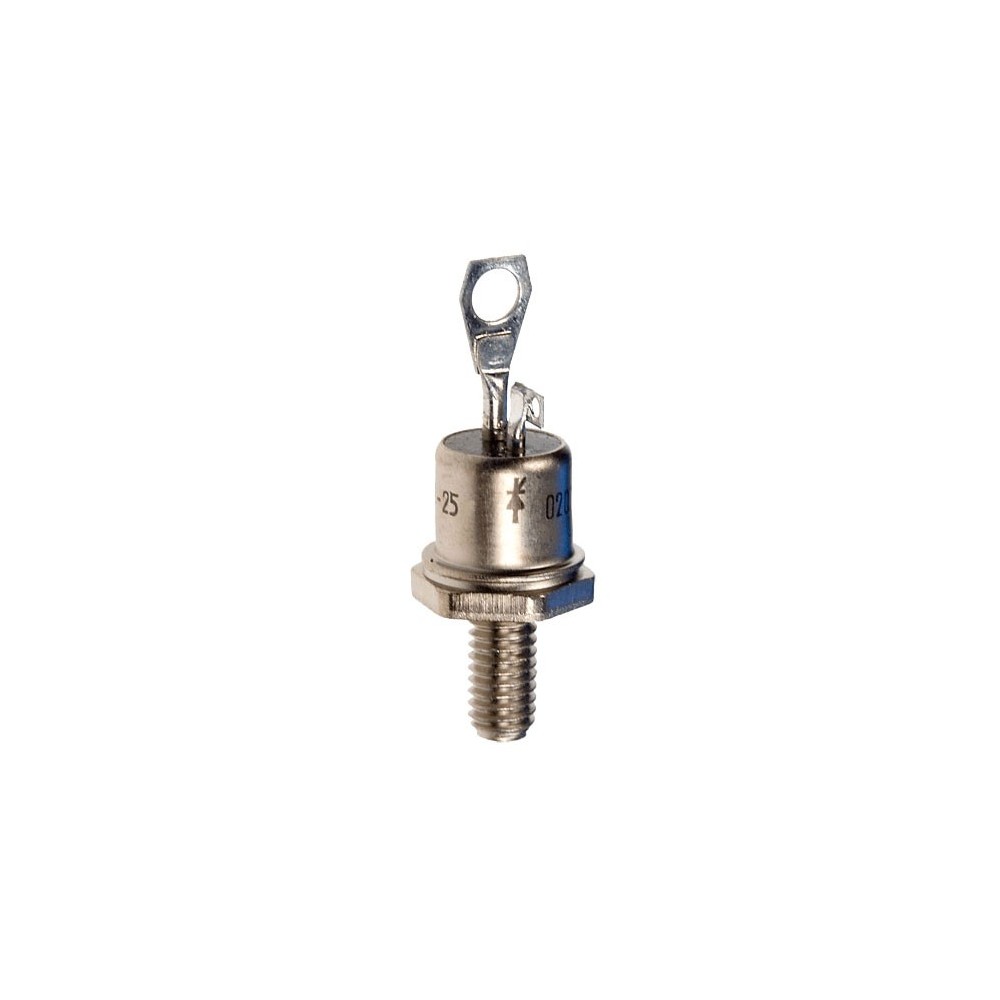

Tiristor 25A 1200V M6

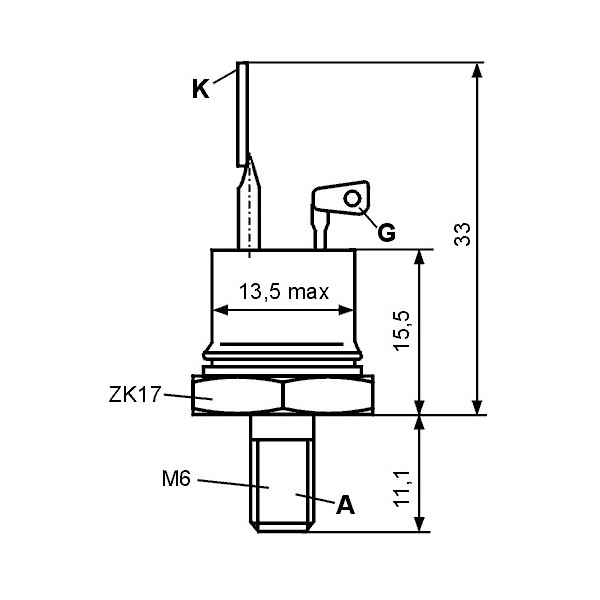

General specifications of Stud Thyristor T122-25-4 (25A 1200V): Stud Thyristor specifications T122-25-4 Maximum allowable average forward current (Case temperature) IT(AV) (TC) 25 A (85ºC) Repetitive pulsed closed state voltage; repetitive pulsed reverse voltage VDRM/VRRM 1200 V RMS on-state current ITRMS 39 A Surge on-state current ITSM 0.35 kA Safety factor i2t 0.61 kA2·s Peak on-state voltage VTM 1.75 V Peak on-state current ITM 78.5 A On-state threshold voltage VT(TO) 1.00 V On-state slope resistance rT 0.0096 mΩ Repetitive peak off-state IDRM 3.0 mA Critical rate of rise of off-state voltage (dVD/dt)cr 50-1000 V/µs Critical rate of rise of on-state current (diT/dt)cr 160 A/µs , Gate trigger direct current IGT 60 mA, Gate trigger direct voltage VGT 2.5 V Turn-off time, max tq 63-250 µs Temperature of p-n junction Tvj max 125 ºC Thermal resistance, junction to case Rth(j-c) 0.45 K/W Weight W 11 g Package (Housing) type ST2 Stud thread - M6
