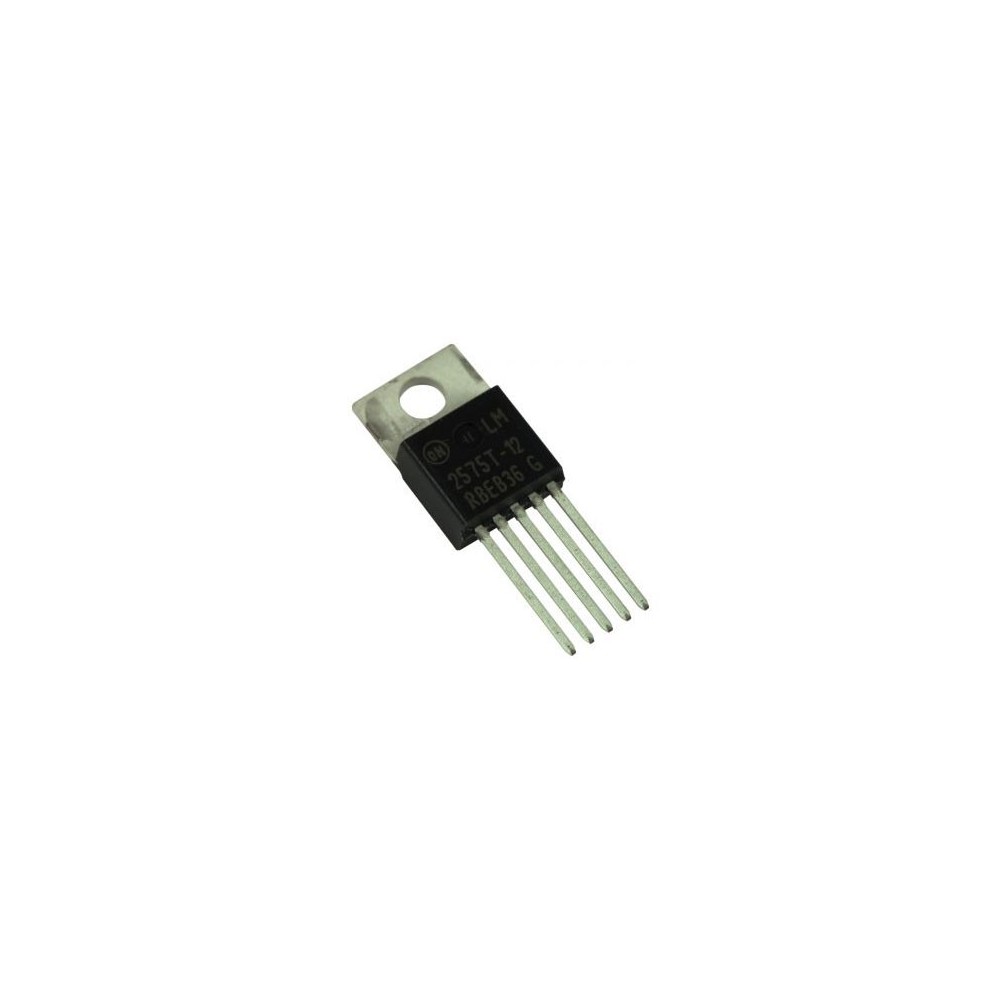

LM2575T-12 Switching Regulator 1-Ch12V 1A TO-220 ,

LM2575T-12/NOPB Step-Down Switching Regulator, 1-Channel 12V 1A 5-Pin, TO-220 , Maximum Output Current 1A

Regulator Function Buck Controller, Inverting
Minimum Input Voltage 4 V
Maximum Input Voltage 40 V
Output Type Fixed
Mounting Type Through Hole
Number of Outputs 1
Maximum Switching Frequency 58 kHz
Pin Count 5
Package Type TO-220
Switching Regulator Yes
Width 4.7mm
Length 10.16mm
Dimensions 10.16 x 4.7 x 8.89mm
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +125 °C
Height 8.89mm
Efficiency 88%
